Display Simple Operation Intelligent 96*96mmThree Phase Multi-function Meter CN-3D3Y

Name: Display Simple Operation Intelligent 9696mmThree Phase Multifunction Meter CN3D3Y
Brand: SUCHEN
Price: 46.29 USD

Buy cheap Display Simple Operation Intelligent 96*96mmThree Phase Multi-function Meter CN-3D3Y product

Place of Origin : Other Country

Brand Name : SUCHEN

Model Number : CN-3D3Y

Display Type : Digital Only

Measuring Range : 0-9999

Accuracy Class : 0.5

Supply Voltage : AC 220V or AC /DC 85~265V

Operating Temperature : -10 ℃~+55 ℃

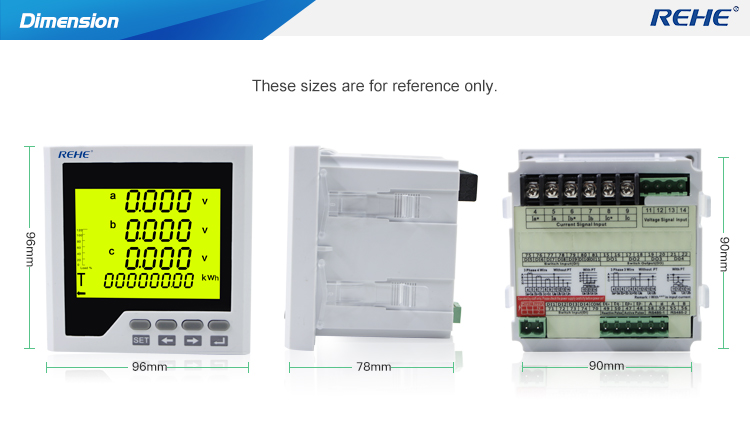

Dimensions : 96*96mm

OEM : Yes

Warranty : 3 years

Color : White or Black (Optional)

Wiring : 3P3W or 3P4W

Auxiliary power : AC 220V or AC/DC 85~265V(Optional))

Signal input : AC 5A 0-500V 50Hz( Default)

Communication : RS485 Port MODBUS-RTU (Default)

Transmission output : 0/4~20mA or 0~5/10V

Switch output : 4 ways be Available

Product name : Intelligent 96*96mmThree Phase Multi-function Meter RH-3D3Y

Packaging Details : Standard Export Carton Meet long - distance trip or as your request
Hd Display Simple Operation Intelligent 96*96mmThree Phase Multi-function Meter RH-3D3Y

Price : $46.29/pieces 1-99 pieces

Contact Now

Display Simple Operation Intelligent 96*96mmThree Phase Multi-function Meter CN-3D3Y

Function \ Model No.	Measure			Extended function(optional)				Display
Function \ Model No.	A,V,Hz,W,Var,Cos ,Kwh,kvar	multi-rate	Harmonic meausring	Switching input	Switching output	Analog output	RS485	LED	LCD
CN-3D2	√	-	-	4	4	4	2	√	-
CN-3D2Y	√	-	-	4	4	4	2	-	√
CN-3FD2Y	√	√	-	4	4	4	2	-	√
CN-3HD2Y	√	-	√	4	4	4	2	-	√
CN-3FHD2Y	√	√	√	4	4	4	2	-	√
CN-3D3	√	-	-	4	4	4	2	√	-
CN-3D3Y	√	-	-	4	4	4	2	-	√
CN-3FD3Y	√	√	-	4	4	4	2	-	√
CN-3HD3Y	√	-	√	4	4	4	2	-	√
CN-3FHD3Y	√	√	√	4	4	4	2	-	√
CN-3D7	√	-	-	4	2	2	1	√	-
CN-3D7Y	√	-	-	4	2	2	1	-	√
CN-3FD7Y	√	√	-	4	2	2	1	-	√
CN-3HD7Y	√	-	√	4	2	2	1	-	√
CN-3FHD7Y	√	√	√	4	2	2	1	-	√
CN-3D6	√	-	-	4	2	2	1	√	-
CN-3D6Y	√	-	-	4	2	2	1	-	√
CN-3FD6Y	√	√	-	4	2	2	1	-	√
CN-3HD6Y	√	-	√	4	2	2	1	-	√
CN-3FHD6Y	√	√	√	4	2	2	1	-	√

1 Display Simple Operation Intelligent 96*96mmThree Phase Multi-function Meter CN-3D3Y

Display Simple Operation Intelligent 96*96mmThree Phase Multi-function Meter CN-3D3Y
